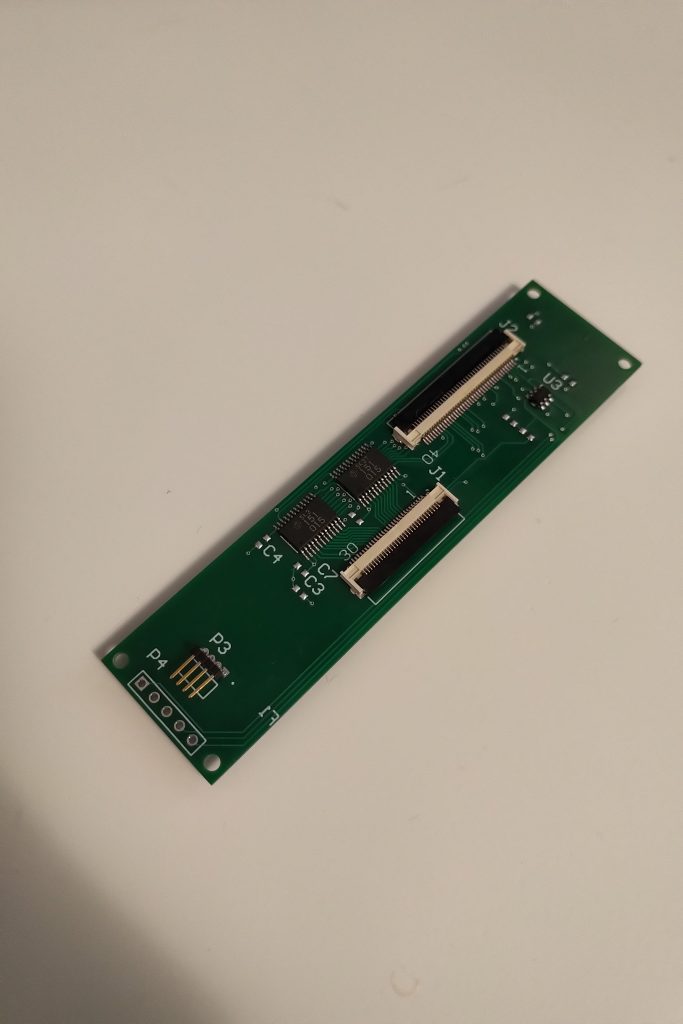

The issue I described as “blue tint” turns out to have been a fault in my test system. I built another revision of the PCB including pads for capacitors, and it would seem I only needed to place a cap on the clock line to resolve the remaining signal integrity issues.
Current Status

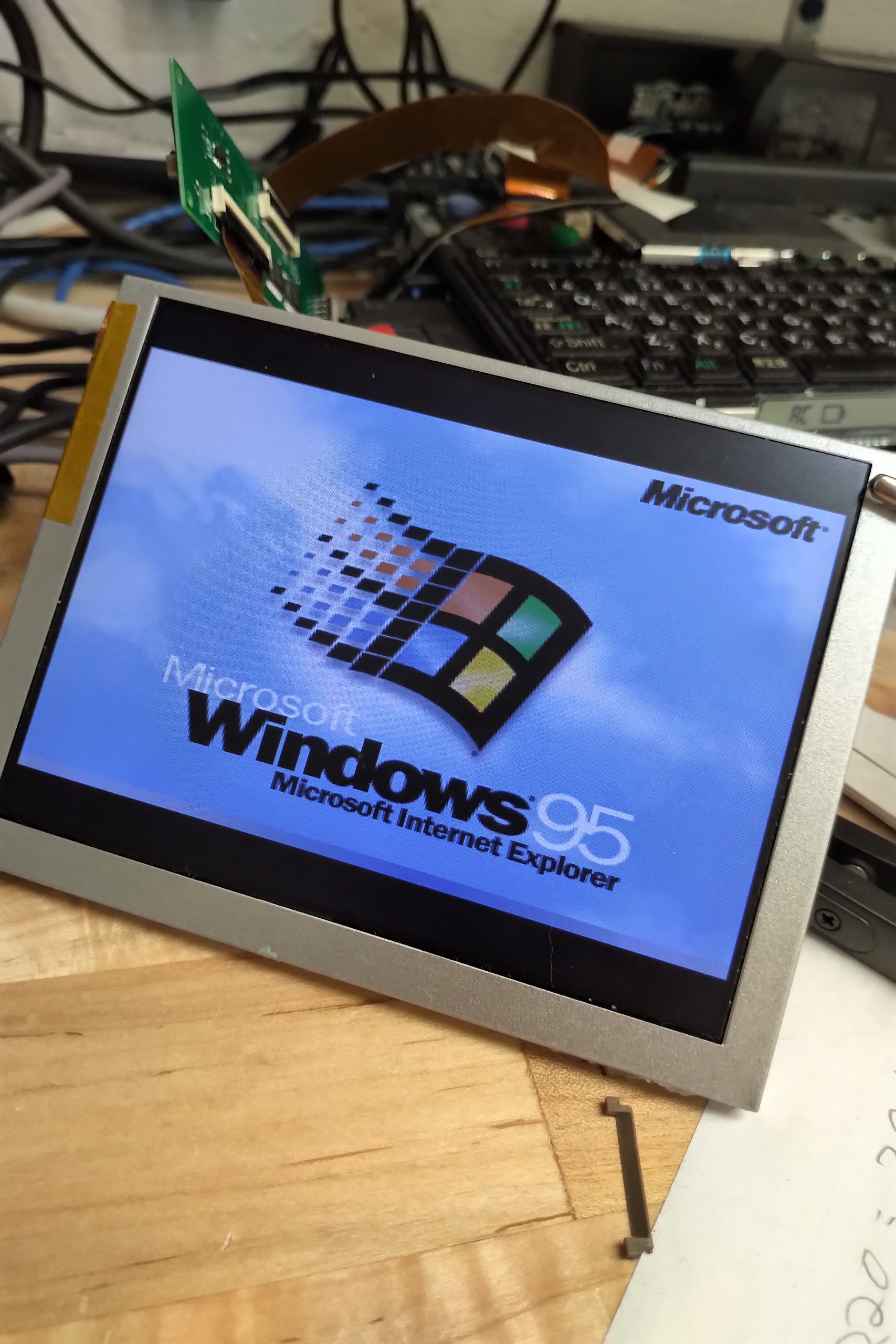

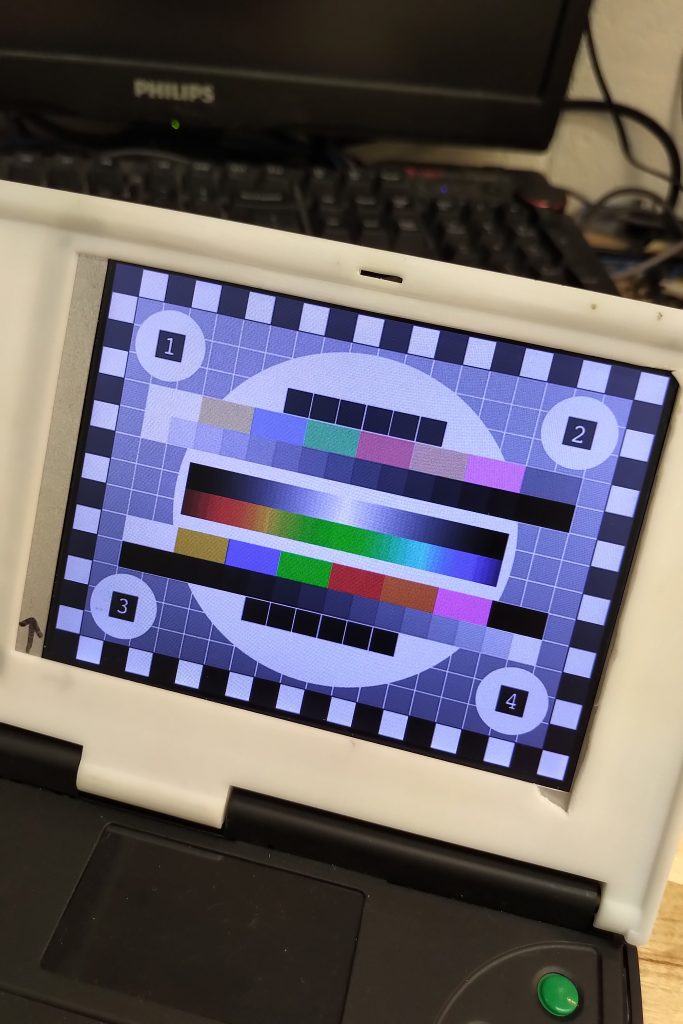

- Full VGA Clock (25.175MHz) without any pixel errors / artifacts
- Full brightness control via the contrast keys
- Less than 100µA draw on the 10.5V inverter supply while display is off.
- All electrical load is on the inverter supply wires and not the fpc.
- 250mA fuse to reduce risk of blowing the internal 650mA fuse in any unexpected failure modes.
- Using the Hitachi transceivers maintains same electrical interface to the CT65535 as the OEM display. This may be an overkill step but it is working well so I am sticking with it.
Next Steps
- Further verify there are no pixel errors at the higher clock speed.
- Revise the PCB to simplify assembly and clean it up.
- Update the 3d model for the new bezel to accommodate the new PCB.
